Contour Gauge Profile Gauge for Accurate Carpentry Measurement with ABS Construction

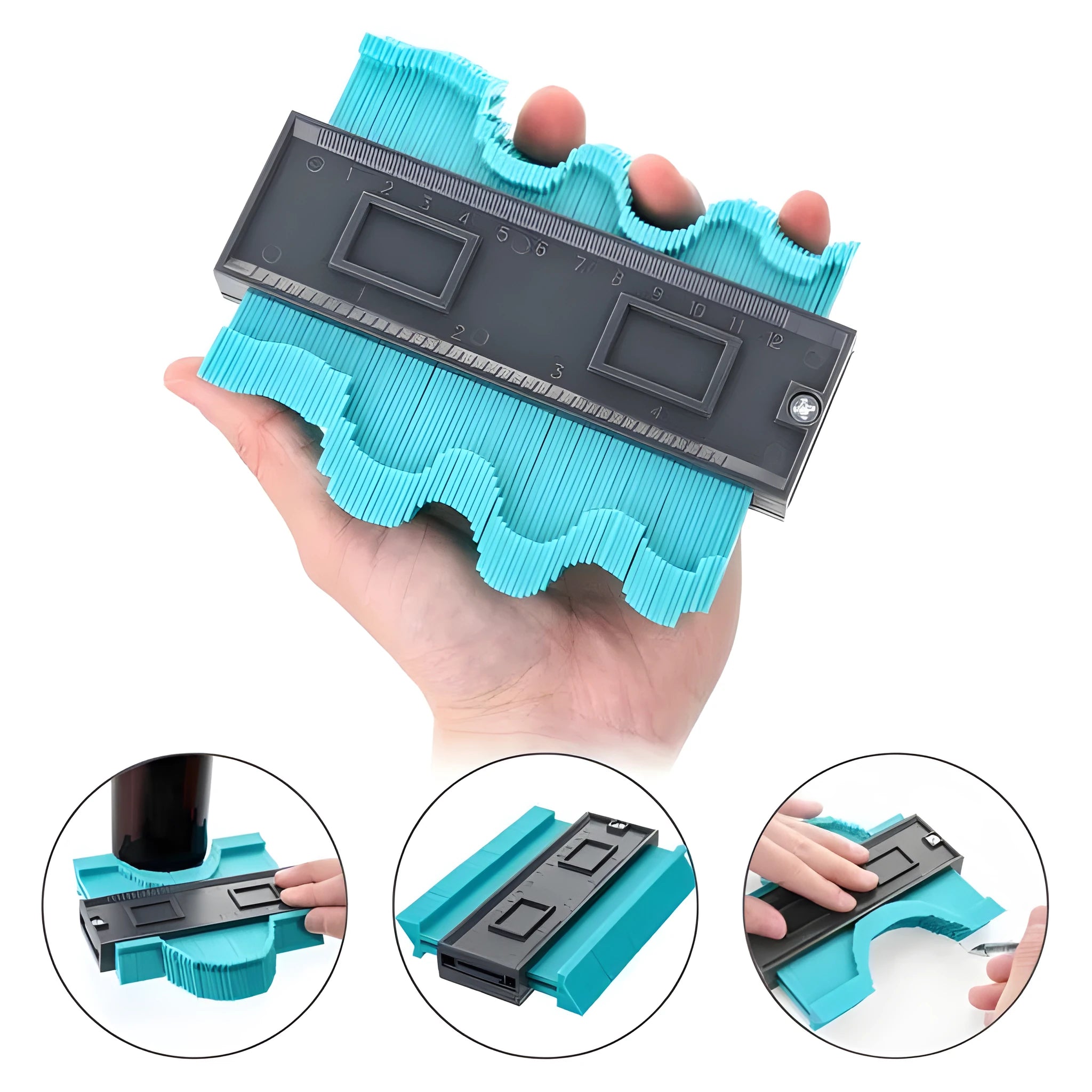

Whether you are marking out cuts for skirting boards, tiles, or pipework, achieving a precise fit around irregular shapes can be time-consuming without the right tool. This contour gauge is designed to simplify that task by duplicating profiles accurately, so you can transfer measurements directly to your workpiece. Made from lightweight ABS plastic, it is a practical addition to any toolkit used for woodworking, DIY, or professional fitting tasks.

Features and Construction

The gauge is engineered around a simple but effective pin-based mechanism that locks the shape of a contour in place. Its ABS build keeps it durable enough for regular workshop handling without adding unnecessary weight.

Material and Build

ABS plastic is used for the main body and pins, offering solid rigidity for accurate profiling while being light enough for one-handed use. The material resists minor impacts typical in workshop environments.

Size and Practical Fit

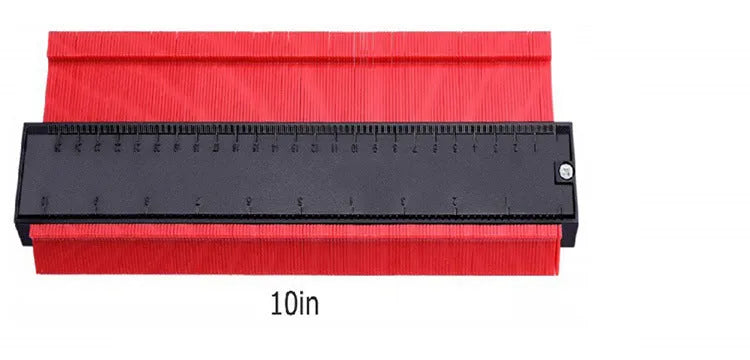

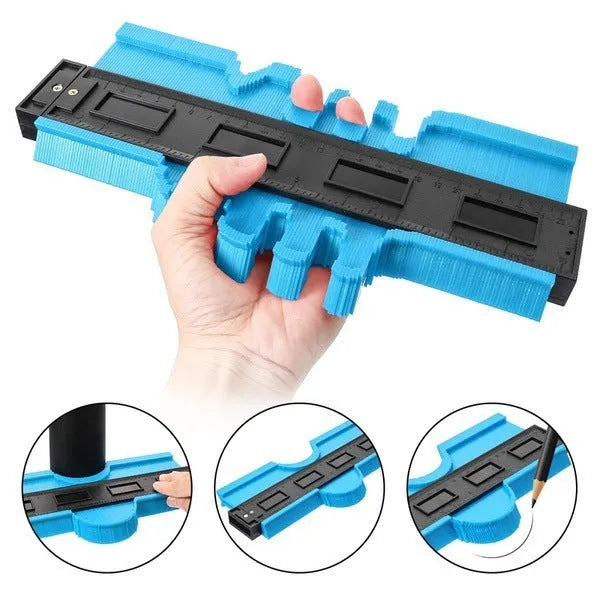

Two size options are available: a compact 12cm (5-inch) model that fits smaller profiles and corners, and a larger 25cm (10-inch) version for wider surfaces such as skirting boards or counter edges. Each gauge measures 146x105x21mm or 275x105x21mm respectively.

Uses and Placement

This tool is suited for a variety of trades where copying irregular outlines is required, from carpentry to tiling and even craft work.

Event or Professional Use

Joiners and fitters can use the gauge to replicate the profile of architraves, door frames, and mouldings for cutting replacement parts with minimal waste. Its quick-release mechanism makes it efficient on the job site.

Everyday Home Use

For home DIY enthusiasts, the gauge helps when fitting laminate flooring around pipes, marking tiles for irregular corners, or duplicating shapes for repair projects. The compact size is easy to store in a toolbox.

Benefits and Buying Value

Choosing the right sizing and colour option allows you to match the gauge to your typical projects, while the durable ABS construction provides long-term reuse value.

Reuse and Low Maintenance

The gauge requires no calibration or batteries, and cleaning is straightforward with a dry cloth. It can be used repeatedly without degradation of its profile-copying accuracy.

Why Choose This Product

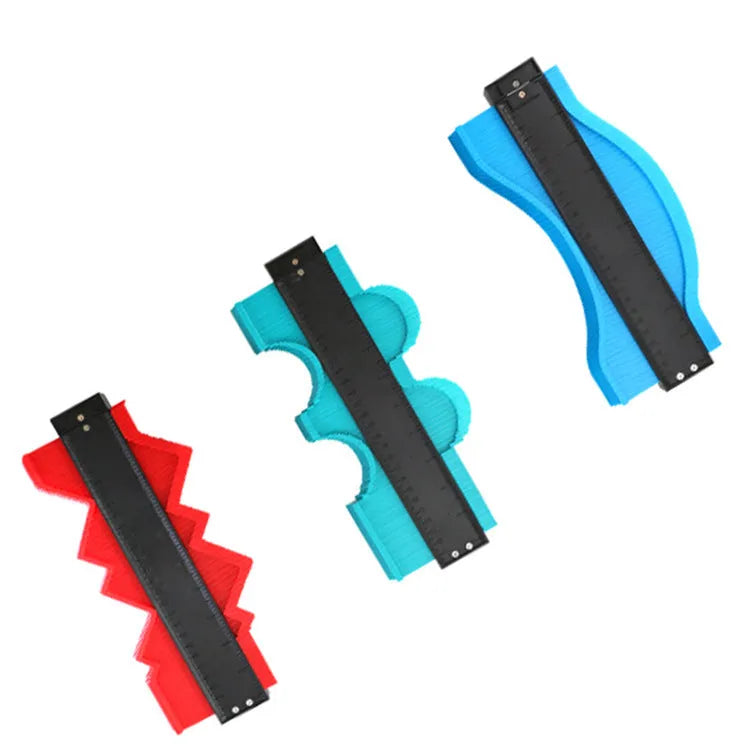

With an ABS body, choice of two sizes, and three colour options (blue, green, red), this contour gauge offers straightforward functionality at a practical price point for both trade and home use.
